MANUAL HYDRAULIC VALVE MONOBLOCK 3xZ80
| Technical information | |
| Supplier: | Bulgaria |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Product weight: | 9,3 kg |
| Valve type: | Z80 monoblock |
| Rated flow: | 80 L/min |
| Number of sections: | 3 |
| Body material: | Cast iron |
| Spool material: | Carbon steel (18 mm diameter) |
| Operation: | Mechanical (via control lever) |
| Hydraulic circuit: | Parallel |
| Max. pressure (port T): | 35 bar (return pressure) |
| Max. pressure (port P): | 315 bar (inlet pressure) |
| Max. pressure (ports A and B): | 315 bar (working pressure) |
| Factory-set pressure relief valve: | 180 bar |
| Pressure relief valve adjustment range: | 120-250 bar |
| Internal leakage: | 8 cm³/min pri Δp = 100 bar in 40°C |
| Operating temperature: | -40°C to +60°C |
| Oil operating temperature: | -20°C to +80°C with NBR seals, -20°C to +100°C with FPM seals |
| Oil viscosity: | 15–75 mm²/s (recommended) |
Description
Z80 hydraulic monoblock valves are designed for reliable and precise control of hydraulic oil flow between the pump and hydraulic actuators. They are available in versions with 1 to 6 sections, allowing the control of one to six independent hydraulic functions depending on the system requirements.
Each section features A and B work ports. The standard BSP version uses a G 1/2 connection for the P pressure inlet, G 3/4 for the T return port, and G 1/2 connections for the A and B work ports. Depending on the selected spool configuration, the valve is suitable for controlling double-acting or single-acting hydraulic cylinders, hydraulic motors, and other hydraulic actuators.
In the manually operated version, the valve is mechanically controlled by levers. Moving an individual lever directs hydraulic oil to the corresponding work port, thereby controlling the direction of movement of the connected actuator. In the neutral position, the respective hydraulic function is not activated.
Main advantages of Z80 valves:
- nominal flow rate: 80 l/min,
- maximum working pressure: 315 bar,
- available with 1 to 6 sections,
- compact and robust monoblock construction,
- simple and direct manual operation,
- independent control of individual hydraulic functions,
- standard hydraulic connections,
- suitable for various mobile and stationary hydraulic systems.
Z80 valves are equipped with a main pressure relief valve and a check valve. They are available in parallel or tandem configurations, with an optional Power Beyond (Carry Over) connection for connecting additional hydraulic valves.
Z80 hydraulic monoblock valves are suitable for use on agricultural and forestry machinery as well as various industrial and mobile hydraulic equipment. Selecting the appropriate number of sections and spool type allows the valve to be adapted to the specific hydraulic functions of each machine or application.

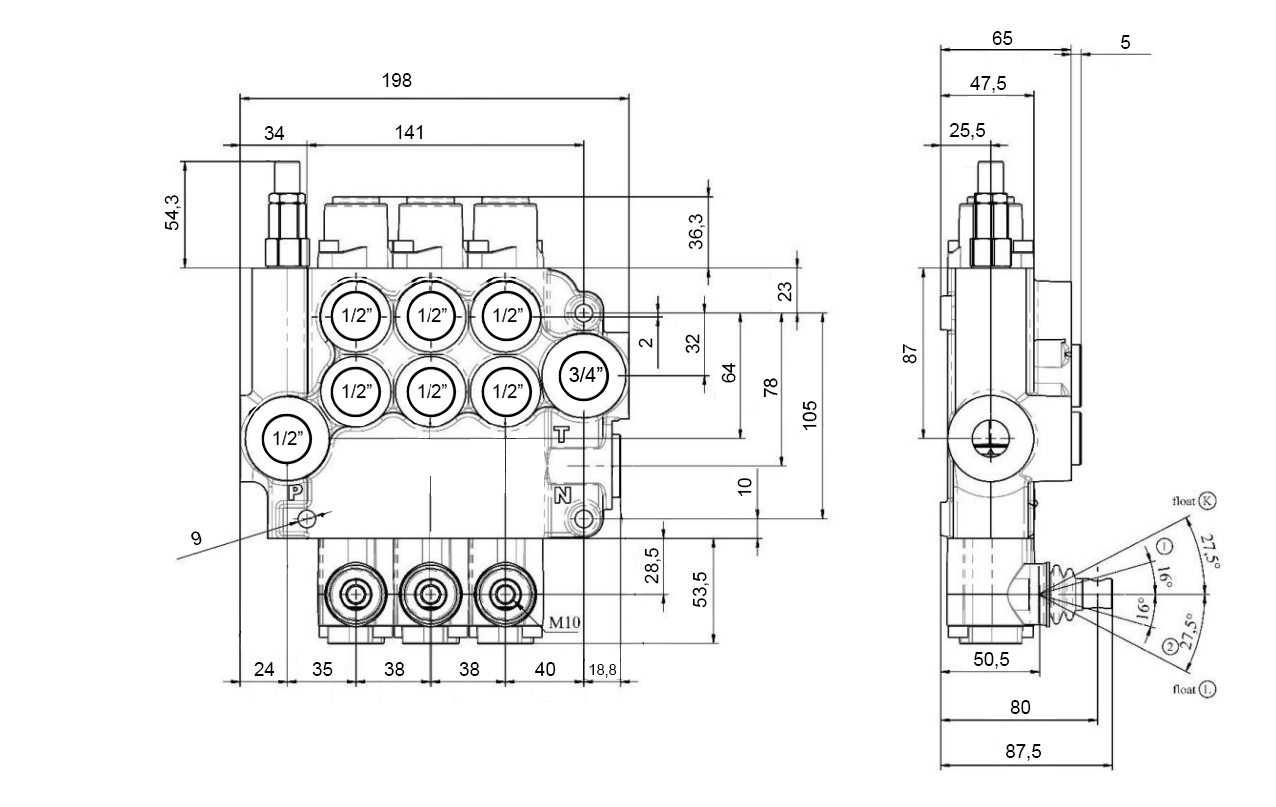

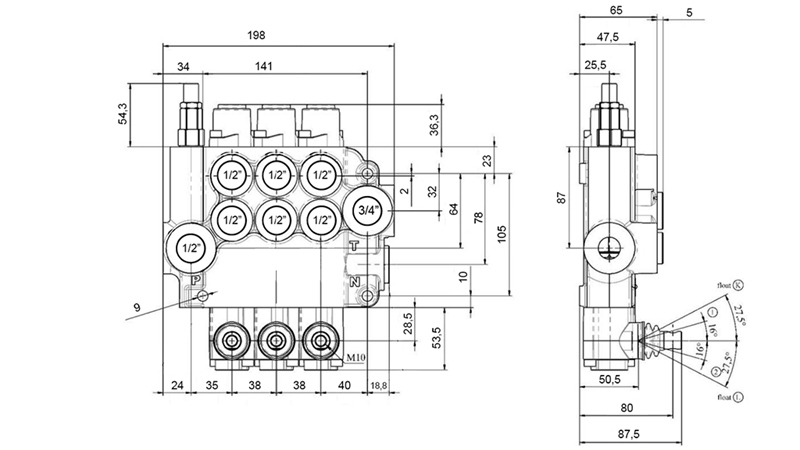

Dimensions

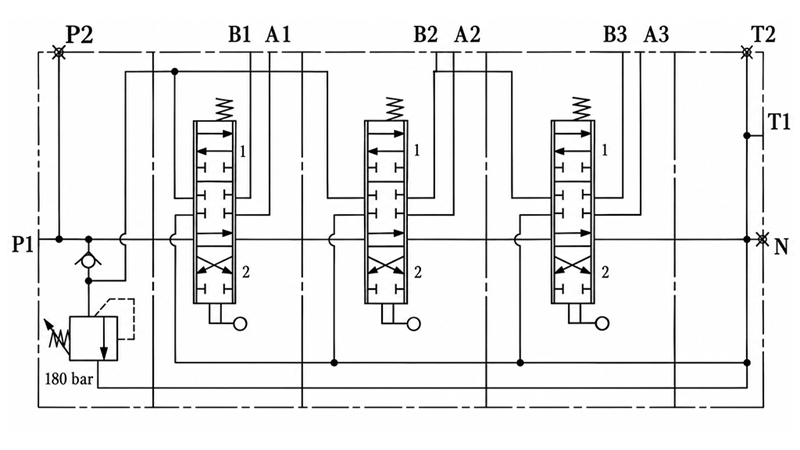

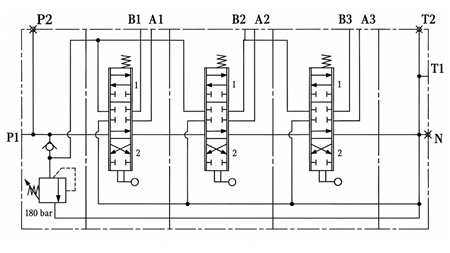

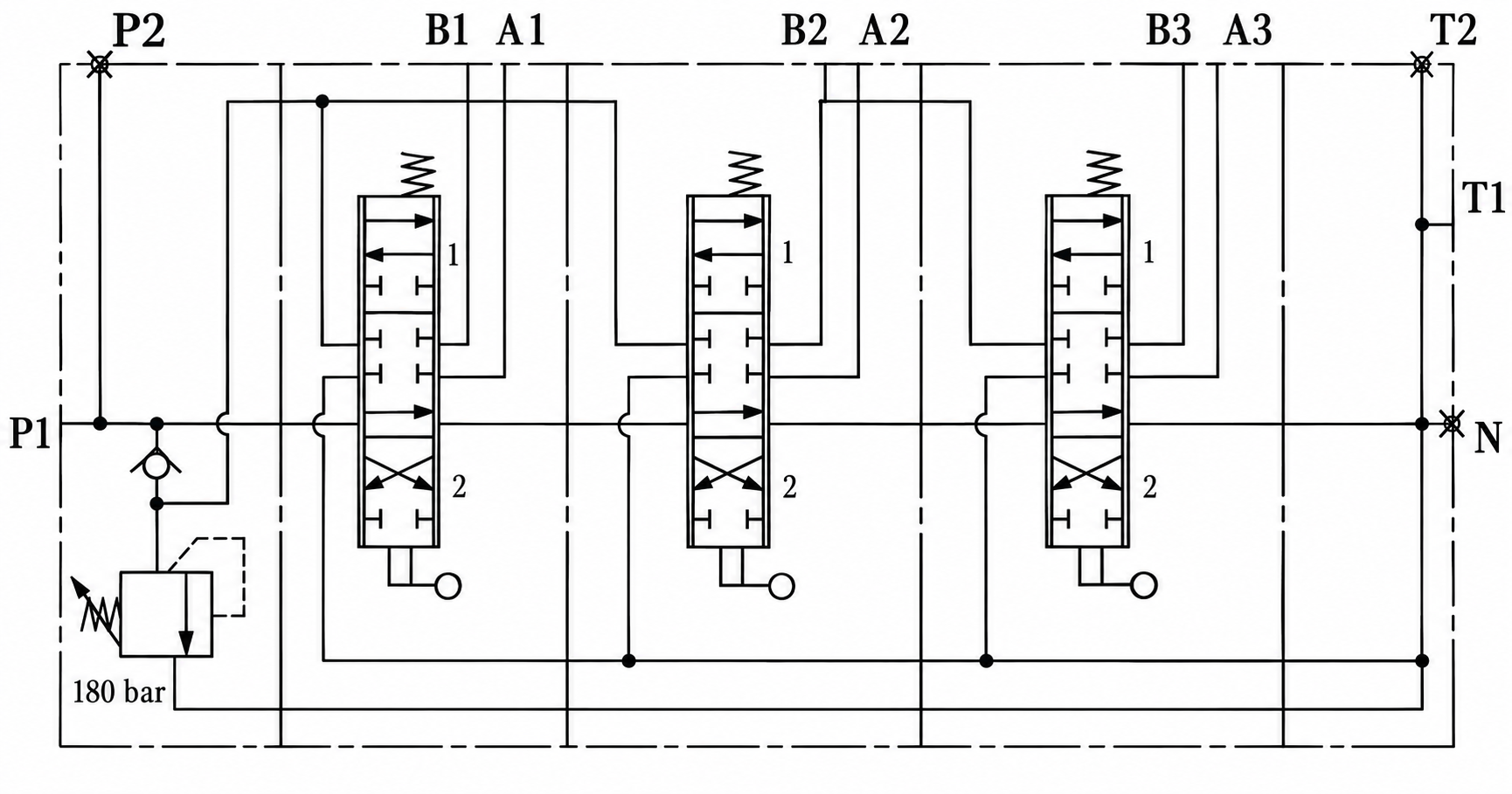

Hydraulic Circuit Diagram
